10" Mega-Beam Clamp
Silver
Part Number:
MBC3T-10M

10

10" Mega-Beam Clamp
Black
Part Number:
MBC3T-10B

10

All Mega-Beam Clamps can clamp as small as 2".

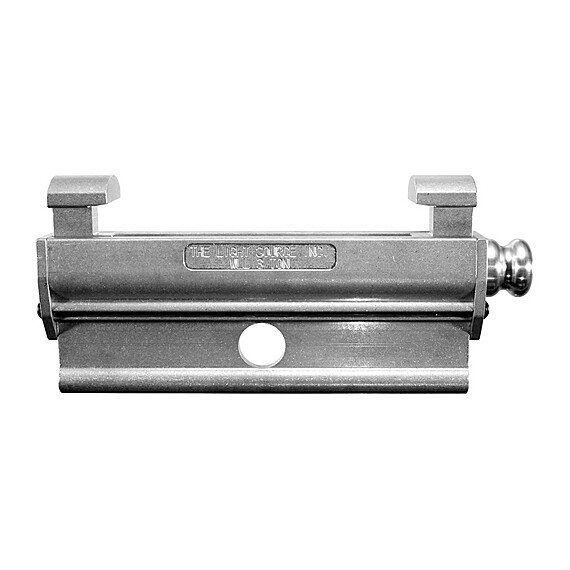

The Mega-Beam Clamp is a low profile, sliding jaw design that allows a load to be secured as closely as possible to the I-beam. The 10" model is load rated for 3 tons.

Two aircraft aluminum jaws are adjusted on the 3/4"-6 TPI Acme threaded shaft. The spring loaded handle locks after adjustment. The center hole is 1 1/2".

The 10" Mega-Beam Clamp fastens from 2" to 10" wide on I-beam flanges up to 1" thick. For I-beam flanges up to 2" thick, Mega-Beam Clamps are available with 2" jaws. The 2" jaws may also be purchased separately.

The aluminum construction is half the weight of steel units and has a wider gripping range.

Download Spec Sheet (PDF)
Working Load Limit

6,000 Pounds / 2720 kg

Dimensions

16.5" L x 7. 5" L x 2.75" W; Center Hole – 1 1/2"

Weight

11.40 Pounds

Case Quantities

Each

Order Codes

MBC3T-10B 10" Mega-Beam Clamp, Black
MBC3T-10B-2 10" Mega-Beam Clamp with 2" Jaws, Black
MBC3T-10M 10" Mega-Beam Clamp, Silver
MBC3T-10M-2 10" Mega-Beam Clamp with 2" Jaws, Silver
