24
24

24" Mega-Beam Clamp
Silver
Part Number:
MBC2T-24M

24

24" Mega-Beam Clamp
Black
Part Number:
MBC2T-24B

24

All Mega-Beam Clamps can clamp as small as 2".

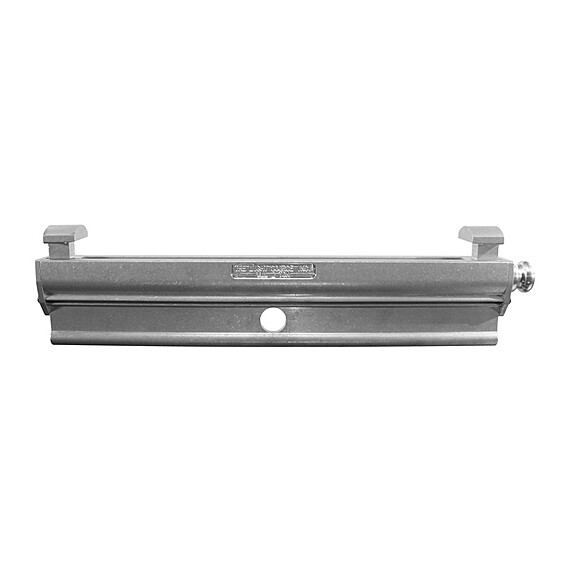

The Mega-Beam Clamp is a low profile, sliding jaw design that allows the load to be secured as closely as possible to the I-beam. The 24" model is load rated for 2 tons.

Two aircraft aluminum jaws are adjusted on the 3/4"-6 TPI Acme threaded shaft. The spring loaded handle locks after adjustment. The center hole is 1 1/2".

The 24" Mega-Beam Clamp fastens from 2" to 24" wide on I-beam flanges up to 1" thick. For I-beam flanges up to 2" thick, Mega-Beam Clamps are available with 2" jaws. The 2" jaws may also be purchased separately.

The aluminum construction is half the weight of steel units and has a wider gripping range.

The Mega-Beam Clamp can be used for both permanent and temporary installations.

Download Spec Sheet (PDF)
Working Load Limit

4,000 Pounds / 1818 kg

Dimensions

30.5" L x 7.5" T x 2.75" W; Center Hole – 1 1/2"

Weight

20.35 Pounds

Case Quantities

Each

Order Codes

MBC2T-24B 24" Mega-Beam Clamp, 2 Ton, Black
MBC2T-24B-2 24" Mega-Beam Clamp with 2" Jaws, Black
MBC2T-24M 24" Mega-Beam Clamp, 2 Ton, Silver
MBC2T-24M-2 24" Mega-Beam Clamp with 2" Jaws, Silver
