Mega-Coupler Parts
Mega-Coupler Parts

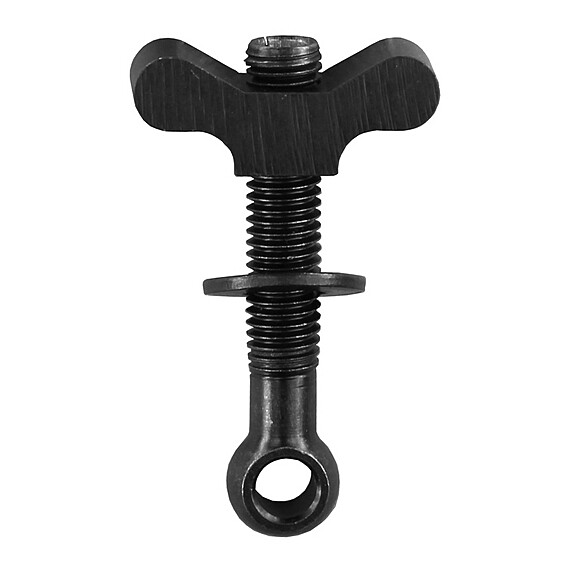

Mega-Coupler Bolt Assembly
Black
Part Number:
ML-SBA-B

Mega-Coupler Parts

Mega-Coupler Bolt Assembly
Silver
Part Number:
ML-SBA-M

Mega-Coupler Parts

Mega-Coupler Bolt Assembly
with Steel Wingnut
Part Number:
ML-SBA-SW

Mega-Coupler Parts

Mega-Coupler Bolt Assembly with Nylock Nut
Part Number:
ML-SBA-NN

Mega-Coupler Parts

Spirol Pin
Locks Swivels into a stationary 90 Degree Position
Part Number:
PS.219X2-ZP

Mega-Coupler Parts

Set of Hardware for Mega-Coupler with 1/2" Hex Head Cap Screw
12 Each:
Nylock Nut
Belleville Washer
1.25" Long Hex Head Cap Screw
Part Number:
ML-HWP

Mega-Coupler Parts

Set of Hardware for Mega-Coupler with 1/2" Flat Head Bolt
12 Each:
Nylock Nut
Belleville Washer
1.5" Long Bolt
Part Number:
ML-HWP1/2CS

Mega-Coupler Parts

Set of Hardware for Mega-Coupler with 3/8" Hex Head Bolt
24 Each:
Nylock Nut
Belleville Washer
1" Bolt
Part Number:
ML-HWP3/8HEX

Mega-Coupler Parts

Set of Hardware for Mega-Coupler with 3/8" Flat Head Bolt
24 Each:
Nylock Nut
Belleville Washer
1.5" Long Bolt
Part Number:
ML-HWP3/8CS

Mega-Coupler Parts

Nylock Nut for Mega-Couplers with 1/2" Hardware
Part Number:
NN.5-13-8ZP

Mega-Coupler Parts

Nylock Nut for Mega Couplers with 3/8" Hardware
Part Number:
NN.375-16-5ZP

Mega-Coupler Parts

Belleville Washer for Mega-Coupler with 1/2" Hardware
Part Number:
WB1-.515X.063-EN

Mega-Coupler Parts

Belleville Washer for Mega-Coupler with 3/8" Hardware
Part Number:
WB.875-.390X.063-EN

Mega-Coupler Parts

1/2" Hex Head Cap Screw for Mega-Coupler
Part Number:
HC.5-13X1.25-8-ZY

Mega-Coupler Parts

3/8" Hex Head Cap Screw for Mega-Coupler
Part Number:
HC.375-16X1-5-ZP

Mega-Coupler Parts

1/2" Flat Head Bolt
1.5" Long
Part Number:
SF.5-13X1.50APL

Mega-Coupler Parts

3/8" Flat Head Bolt for Countersunk Mega-Coupler (1.5" Long)
Part Number:
SF.375-16X1.5-APL

Mega-Coupler Parts

1/2" Flat Head Bolt for Countersunk Mega-Coupler
2" Long
Part Number:
SF.5-13×2.00-APL

Mega-Coupler Parts

1/2" Flat Head Stainless Steel Bolt
2" Long
Part Number:
SF.5-13×2.00-SS

Mega-Coupler Parts

Metric M-12 Bolt for 1/2" Countersunk Mega-Coupler
Part Number:
SF M12X40MM-APL

Mega-Coupler Parts

Metric Nylock Nut M-12 for 1/2" Countersunk Mega-Coupler
Part Number:
NN-M12-8ZP

Mega-Coupler Parts

Metric M-10 Bolt for 3/8" Countersunk Mega-Coupler
Part Number:
SF M10X40MM-APL

Mega-Coupler Parts

Metric M-10 Nylock Nut for 3/8" Countersunk Mega-Coupler
Part Number:
NN-M10-8ZP

Mega-Coupler Parts

The Light Source Wing Nut
Can be used for OEM products.
Replacement wing nuts for the Mega-Coupler require the
bolt and wing nut assembly.
Black
Part Number:
ML-M-NB

Mega-Coupler Parts

The Light Source Wing Nut
Can be used for OEM products.
Replacement wing nuts for the Mega-Coupler require the
bolt and wing nut assembly.
Black
Part Number:
ML-M-N

BOLT ASSEMBLIES
Mega-Coupler Bolt Assemblies include the Mega-Coupler swivel bolt, a 1/2" SAE washer, and a 1/2" nut. Also available in stainless steel.

HARDWARE PACKS
Sets of bolts, nylock nuts and Belleville Washers.
Packs for 1/2" Mega-Couplers include 12 sets.
Packs for 3/8" Mega-Couplers include 24 sets.

SPIROL PIN
The spirol pin locks a Mega Swivel Coupler into a 90 degree position.

METRIC
Countersunk Mega-Couplers can be converted to metric using metric bolts and nuts.
The M-12 fits the 1/2" Countersunk Mega-Coupler.
The M-10 fits the 3/8" Countersunk Mega-Coupler.

WING NUTS
The Light Source wing nuts are available for OEM products. They cannot be used as a replacement nut on the Mega-Coupler since the wing nuts are permanently attached to the bolt to prevent loss. To replace a wing nut, the bolt and wing nut assembly must be used.

Download Spec Sheet (PDF)
Case Quantities

Each

Order Codes

HC.375-16X1-5-ZP 3/8" Hex Head Cap Screw for Mega-Coupler
HC.5-13X1.25-8-ZY 1/2" Hex Head Cap Screw for Mega-Coupler
ML-HWP Set of 12 Hardware Pack for 1/2" Hex Head Cap Screw Mega-Couplers
ML-HWP1/2CS Set of 12 Hardware Pack for 1/2" Countersunk Mega-Coupler
ML-HWP3/8CS Set of 24 Hardware Pack for 3/8" Countersunk Mega-Couplers
ML-HWP3/8HEX Set of 24 Hardware Pack for 3/8" Hex Head Cap Screw Mega-Couplers
ML-HWPSS Set of 12 Hex Head Stainless Steel Hardware Pack for Mega-Couplers, Polished
ML-SBA-B Mega-Coupler Bolt Assembly, Black
ML-SBA-M Mega-Coupler Bolt Assembly , Silver
ML-SBA-NH Mega-Coupler Bolt Assembly with Hex Nut, Silver
ML-SBA-SS Mega-Coupler Bolt Assembly, Stainless Steel
ML-SBA-SW Mega-Coupler Bolt Assembly Steel Wing Nut
NN-M10-8ZP M-10 Nylock Nut for Countersunk Mega-Coupler
NN-M12-8ZP M-12 Nylock Nut for Countersunk Mega-Coupler
NN.375-16-5ZP Nylock Nut for Mega-Coupler with 3/8" Hardware
NN.5-13-8ZP Nylock Nut for Mega-Coupler with 1/2" Hardware
PS.219X2-ZP Spirol Pin used to fix Swivel Couplers into a 90 Degree stationary position
SF M10X40MM-APL M-10 Flat Head Bolt for Countersunk Mega-Coupler
SF M12X40MM-APL M-12 Flat Head Bolt for Countersunk Mega-Coupler
SF.375-16X1.5-APL 3/8" Flat Head Bolt for Countersunk Mega-Coupler (1.5" Long)
SF.5-13X1.50-APL 1/2" Flat Head Bolt for Countersunk Mega-Coupler (1.5" Long)
SF.5-13X2.00-APL 1/2" Flat Head Bolt for Countersunk Mega-Coupler (2" Long)
SF.5-13X2.00SS 1/2" Flat Head, 2" Long, Stainless Steel Bolt
