Mega-Coupler with Flat Head Bolt
Mega-Coupler with Flat Head Bolt
Click to enlarge

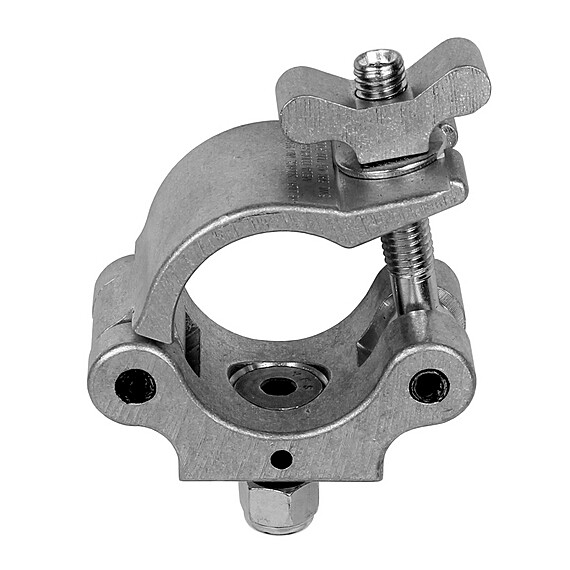

Mega-Coupler
with 1/2" Countersunk
Flat Head Bolt
Silver
Part Number:
MLM1/2CS

Mega-Coupler with Flat Head Bolt
Click to enlarge

Mega-Coupler
with 1/2" Countersunk
Flat Head Bolt
Black
Part Number:
MLB1/2CS

Mega-Coupler with Flat Head Bolt
Click to enlarge

Mega-Coupler with 1/2" Countersunk Flat Head Bolt
White
Part Number:
MLW1/2CS

Mega-Coupler with Flat Head Bolt
Click to enlarge

Mega-Coupler with 1/2" Countersunk Flat Head Bolt, Nylock Nut
Silver
Part Number:
MLM1/2CS-NN

Mega-Coupler with Flat Head Bolt
Click to enlarge

Mega-Coupler with 1/2" Countersunk Flat Head Bolt, Nylock Nut
Black
Part Number:
MLB1/2CS-NN

Mega-Coupler with Flat Head Bolt
Click to enlarge

Mega-Coupler with 1/2" Countersunk Flat Head Bolt, Steel Wing Nut
Silver
Part Number:
MLM1/2CS-SW

Mega-Coupler with Flat Head Bolt
Click to enlarge

Mega-Coupler with 1/2" Countersunk Flat Head Bolt, Steel Wing Nut
Black
Part Number:
MLB1/2CS-SW

Mega-Coupler with Flat Head Bolt
Click to enlarge

Mega-Coupler with 3/8" Countersunk Flat Head Bolt
Silver
Part Number:
MLM3/8CS

Mega-Coupler with Flat Head Bolt
Click to enlarge

Mega-Coupler with 3/8" Countersunk Flat Head Bolt
Black
Part Number:
MLB3/8CS

The Countersunk Mega-Coupler replaces the standard hex head bolt with a flat head bolt.

The Countersunk Mega-Coupler comes with a 1/2" or 3/8" flat head base and comes standard with a heavy duty wing nut developed by The Light Source. Other nut options include a steel wing nut or a nylock nut.

For metric requirements, the M10 and M12 flat head bolt is available as well.

Download Spec Sheet (PDF)
Minimum Size

1 1/4" pipe, 1.66OD truss tube

Maximum Size

1.5" pipe, 1.90" OD pipe, 2" OD truss tube

Working Load Limit

1100 pounds

Hardware

1/2″ × 1.5″ flat head bolt or
3/8″ × 1.5″ flat head bolt
Nylock Nut
Belleville Washer

Weight

1.4 lbs. (MLM1/2CS-NN – 1.12 lbs.)

Case Quantities

24

Order Codes

MLB-M10CS Mega-Coupler with Flat Head Bolt, M10 Metric Hardware, Black
MLB-M12CS Mega-Coupler with Flat Head Bolt, M12 Metric Hardware, Black Anodized
MLB-M12CS-NN Mega-Coupler with Flat Head Bolt, M12 Metric Hardware, Nylock Nut, Black
MLB1/2CS Mega-Coupler with 1/2" Flat Head Bolt, Black Anodized
MLB1/2CS-NN Mega-Coupler with 1/2" Flat Head Bolt, Nyloc Nut, Black Anodized
MLB1/2CS-SS Mega-Coupler with 1/2" Flat Head Bolt, Stainless Steel Hardware, Black Anodized
MLB1/2CS-SW Mega-Coupler with 1/2" Flat Head Bolt, Steel Wingnut, Black Anodized
MLB3/8CS Mega-Coupler with 3/8" Flat Head Bolt, Black Anodized
MLM-M12CS Mega-Coupler with Flat Head Bolt, M12 Metric Hardware, Silver
MLM-M12CS-NN Mega-Coupler with Flat Head Bolt, M12 Metric Hardware, Nylock Nut, Silver
MLM1/2CS Mega-Coupler with 1/2" Flat Head Bolt, Silver
MLM1/2CS-NN Mega-Coupler with 1/2" Flat Head Bolt, Nylock Nut, Silver
MLM1/2CS-SS Mega-Coupler with 1/2" Flat Head Bolt, Stainless Steel Hardware, Silver
MLM1/2CS-SW Mega-Coupler with 1/2" Flat Head Bolt, Steel Wingnut, Silver
MLM3/8CS Mega-Coupler with 3/8" Flat Head Bolt, Silver
MLW-1/2CS Mega-Coupler with 1/2" Flat Head Bolt, White Powder Coat
MLW-1/2CS-SS Mega-Coupler with 1/2" Flat Head Bolt, Stainless Steel Hardware, White Powder Coat
MLW-1/2CS-SW Mega-Coupler with 1/2" Flat Head Bolt, Steel Wingnut, White Powder Coat
MLW3/8CS MegCoupler with 3/8" Flat Head Bolt, White Powder Coat
MLW3/8CS Mega-Coupler 3/8" Flat Head Bolt, White Powder Coat
MLW3/8CS-NN Mega-Coupler with 3/8" Flat Head Bolt, Nylock Nut, White Powder Coat
MLW3/8SS-NN Mega-Coupler with 3/8" Flat Head Bolt, Stainless Steel Hardware, Nylock Nut, White Powder Coat
