The XYZ Mount shown installed below the track and to the RIGHT.
The XYZ Mount can also be installed above the track.
The XYZ Mount shown installed below the track and to the LEFT.
The “Z” turnbuckle assembly shown extended. It can extend from 1-1/2" from the wall to 3-1/8" from the wall.
The “Y” axis and “Z” axis shown fully extended.
The “X” axis adjusts and locks with a 3/16" Allen wrench.
The “Y” axis adjusts with a 3/16" Allen wrench.
The XYZ Mount and the XYZ Channel combine to make installing LED video walls a breeze. There are 1-1/2 inches of adjustment travel in all three axis’s, allowing for fine tuning the LED panels to their exact alignment. Since walls are not created plumb and flat, the XYZ mount system provides the needed flexibility for necessary adjustments.
- Working Load Limit
1/4"-20 tpi to fasten screen
- Case Quantities

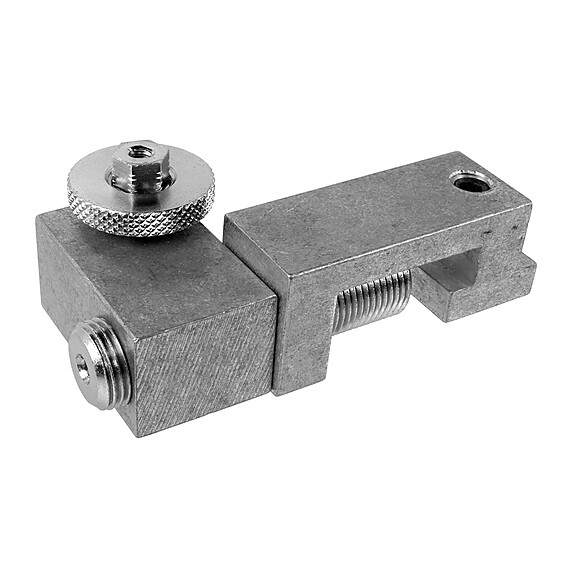

XYZ Mount, Silver
